AXP-1200 Power Supply
The AXP-1200 is equipped with stable and 100% efficient Japanese capacitors. Gamepower AXP-1200 with 100-240V 80 Plus® Platinum rating offers high efficiency of over 93%. With PCI Express 5.0 technology and ATX 3.0, maximize your PC's potential in data transmission.
Japanese Capacitor
The AXP-1200 is equipped with stable and 100% efficient Japanese capacitors. It uses Japanese Bulk capacitors to ensure a longer lifetime and protect your Power Supply from sudden power changes.
Quiet and High Efficiency
Gamepower AXP-1200 with 100-240V 80 Plus® Platinum rating offers high efficiency of over 93%.
PCI-E 5.0 and ATX 3.0 Technology
With PCI Express 5.0 technology and ATX 3.0, maximize your PC's potential in data transmission and enjoy a faster experience! Update your PC with ATX 3.0 for more energy savings and powerful performance. Enjoy high speed and performance.
Fully Modular Design
Power control is in your hands! Not only for easier installation, it also gives your system a clean and organized look. Put an end to wiring clutter and maximize your PC's performance!
Multiple Protection
Updated ATX 3.0 specifications for next-generation hardware power demands with OVP/OPP/OCP/SCP/UVP protections, ensuring users get the most stable and cost-optimized performance possible with the highest power efficiency.
Low Noise, Less Heat
Equipped with a 140 mm FDB (Fluid Dynamic Bearing) fan that provides optimal cooling and reduces noise. The speed is automatically adjusted according to the load to switch to heat dissipation or quiet state.
Latest Technology Compatibility
Fully corresponds to various latest CPU platforms. Ensure the highest power with Intel ATX12V V3.0 & EPS12V V2.92 and support the latest Intel and AMD platform, providing full power to your PC system.
EMI Filter
Compliant with safety component requirements, advanced filtering eliminates excessive clutter and potential interference.
DC-DC Stability
DC to DC modules with low ripple noise extend system lifetime.
5 Year Warranty
The Gamepower AXP-1200 delivers reliable performance and is backed by a 5-year warranty.
Input Current and Voltage Waveform
Input and Output Power
Efficiency of the Power Supply
Fan Speed Diagram
Contenido del paquete
- User Manual
- Warranty Card
- Gamepower Sticker
- DC Cables
| Form Factor | ATX |
|---|---|
| Total Continuous Power | 1200W |
| Certified | 80 Plus Platinum |
| PCI-E 5.0 & ATX3.0 | Yes |
| Capacitor | Japanese |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Modular Type | Full Modular |
| Cable Type | Black Flat Cables |
| Fan Size | 14cm |
| MTBF | 100.000 Hrs |
| Life Expectancy | 40.000 Hrs |
| EMI Filter | Yes |
| Dimensions | 160x150x86mm |
| Operating Temperature | -10°~65° |
| AC Input | Full Range,100V-240V,8A,47-63HZ |
| DC Output | +12V - +5V - +3.3V - -12V - +5Vsb |
| Protection | OVP/OPP/OCP/SCP/UVP |
| Origin | China |
| UPC | 850053867606 |

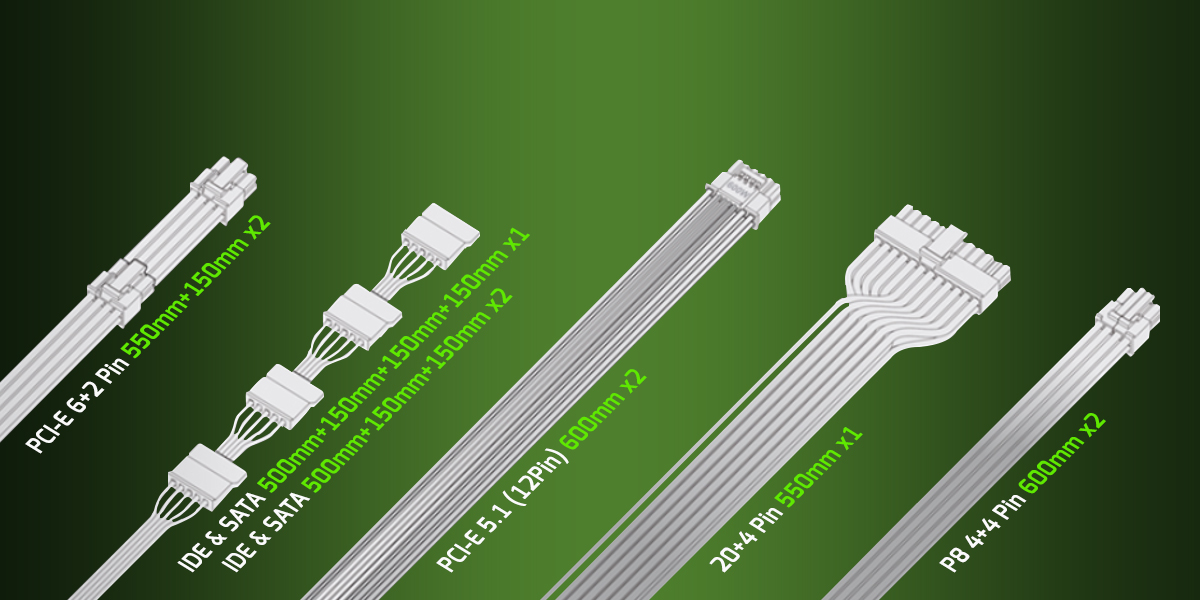

| 20+4 Pin | 1*Cable (55cm) |
|---|---|
| CPU P8 Pin(4+4) | 2*Cable (60cm) |
| PCI-E 5.0 (12 Pin ) | 2*Cables (60cm) |
| PCI-E (6+2) Pin + PCI-E (6+2) Pin | 2*Cables (55cm+15cm) |
| SATA+SATA+IDE | 1*Cable (50cm+15cm+15cm) |
| SATA+SATA+IDE | 1*Cable (50cm+15cm+15cm) |
| SATA+SATA+SATA+IDE | 1*Cable (50cm+15cm+15cm+15cm) |
